WEBER 40 DCN diagrama de partes


 - haga clic en parte para ver más

Lista de partes:

NoParte NoPrecioPzas.Descripción
164700.005-4Top Cover Fixing Screw
231716.029-1Top Cover
364955.004-4Top Cover Stud
441705.026$ 14.91Top Cover Gasket
552000.010$ 2.21Float Pin
683102.070-1Needle Valve Gasket
779503$ 13.81Needle & Seat
864290.005$ 34.51Pump Demand Valve
977201$ 3.72Air Corrector Jet
1041015.012-1Brass Float
1176215-1Pump Jet
1261440$ 16.62Emulsion Tube
1341540.014$ 1.81Pump Jet Gasket
1473801$ 4.72Main Jet
1574401$ 7.42Idle Jet
1652570.005$ 10.82Idle Jet Holder
1747600.107$ 10.81Accelerator Pump Spring
1847407.249$ 131Accelerator Pump Diaphragm
1932486.013-1Accelerator Pump Cover Assembly Includes
2052010.033-1Pin
21Not Available-1Split Pin
22Not Available-1Washer
2345089.001-1Pump Pivot Lever
2432484.001-1Accelerator Pump Cover
2564700.004$ 3.53Choke Cover Fixing Screw
2655525.007$ 11Lock Washer
2752025.001-1Pin
2847605.018-1Spring
2934710.003$ 1.22Throttle Spindle Nut
3055520.004$ 1.22Shaft Lock Tab
3145082.002-1Carb Lever
3255510.006-2Washer
3314852.042-1Pump Cam
3455555.005$ 2.52Washer
3510005.408$ 1071Throttle Shaft
3664005.020-2Throttle Plate
3764520.027-4Screw
3832650.003$ 2.32Sealed Bearing
3958000.017$ 4.12Bearing Cover
4055530.005$ 6.42Washer
4145041.011-1Throttle Lever Assembly Includes
42Not Available-1Lever
43Not Available-1Screw
4434705.001-1Nut
45Not Available-1Fast Idle Lever Assembly Includes
4664800.002$ 7.61Bolt with Hole
47Not Available-1Fast Idle Lever
4834720.002$ 6.61Nut
4964700.012$ 3.21Lever Fixing Screw
5012775.010$ 10.11Bushing For Lever
51a47600.007$ 2.62Spring
5147600.007$ 2.61Spring
5212785.084-1Bushing
5364625.012$ 9.41Throttle Stop Screw
5464750.001$ 4.42Idle Mixture Screw
5572129$ 23.22Main Venturi (Choke)
5671102$ 29.92Auxiliary Venturi
5761002.018$ 131Strainer Inspection Plug
5837022.010$ 61Fuel Filter
5947610.003$ 5.71Spring
60-2
61-1
62-2
63-2
64-1
65-1
66-4
67-2
68-1
69-1

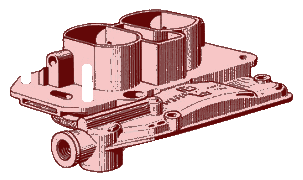

WEBER 40 DCN

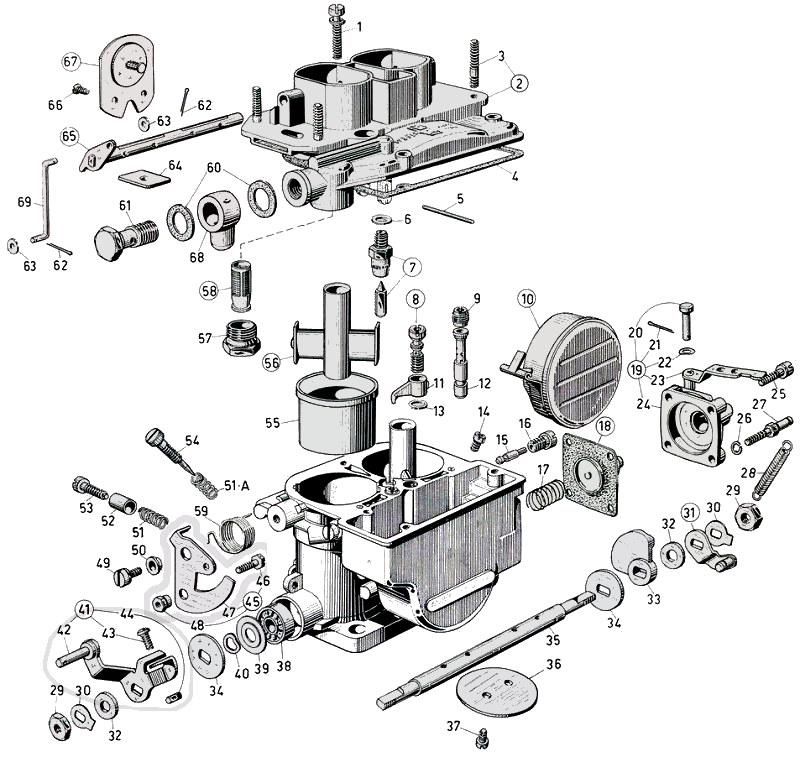

Exploded view
