WEBER 40 DFAV diagrama de partes


 - haga clic en parte para ver más

Lista de partes:

NoParte NoPrecioPzas.Descripción
131716.092-1Carb Top Cover
264955.002$ 8.63Stud Bolt
364700.005-5Top Cover Screw
461002.018$ 131Strainer Inspection Plug
537022.010$ 61Strainer
664525.003-4Screw
764010.007$ 132Plate
810020.204-1Shaft & Lever Assembly
941705.031-1Top Cover Gasket
1052135.010$ 3.51Dust Seal
1183102.070-1Gasket
1279519-1Needle & Seat
1341015.004$ 60.11Float
1452000.015$ 2.21Float Pin
1532610.005$ 1.62Split Pin
1661280.004-1Rod
1773801$ 4.72Main Jet
1861015.005$ 3.31Plug
1910015.482-1Shaft
2010015.430-1Shaft Assembly
2164005.011$ 24.32Plate
2264520.027-4Screw
2347600.107$ 10.81Accelerator Pump Spring
2447407.027$ 131Diaphragm Assembly
2532486.015-1Cover Assy
2664700.004$ 3.54Screw
2747600.007$ 2.61Spring
2864625.001-1Screw
2945041.001-1Lever Assembly
3045039.001-1Lever
3147600.007$ 2.61Spring
3264590.001$ 6.81Screw
3347610.010$ 121Spring
3455555.006-1Spacer
3541565.008-1O Ring Seal
3634705.001-1Nut
3755525.001-1Washer Spring
3864700.014$ 1.11Screw
3945032.006-1Lever
4012750.016$ 10.21Spacer
4147610.018$ 9.31Spring
4255510.013-1Washer
4364700.007-3Screw
4432384.001-1Cover
4547600.003$ 6.41Spring
4647407.008-1Vacuum Diaphragm & Shaft Assy
4757804.001-1Body Assembly
4810085.001$ 29.21Shaft & Lever Assembly
4952135.015-1Plate
5064520.001-1Screw
5164700.008-3Screw
5241640.005$ 3.51Gasket
5357804.005-1Thermostat Assy
5441555.001-1Gasket
5552135.006$ 6.61Ring
5632444.002-1Water Chamber
5741530.002$ 21Washer
5864615.001-1Bolt
5964615.005-3Screw
6032610.005$ 1.62Split Pin
6161280.041-1Rod
6234715.014$ 1.22Nut
6355520.002$ 1.22Lock Washer
6445027.089$ 191Lever
6564610.004-1Screw
6655525.007$ 11Washer
6764615.003-2Screw
6855535.001-2Washer External Tooth
6955510.007-2Washer
7058202.011$ 69.51Primary gear level
7145039.003-1Lever
7212750.001-1Bushing
7355530.002$ 3.51Washer
7445032.039-1Lever
7555555.016$ 2.32Wahser
7652130.010$ 5.74Shaft Bushing
7732464.001-1Cover
7858202.003$ 69.51Geared Carb Sector (Left Hand)
7945025.024-1lever
8047610.012$ 5.11Left Hand Return Spring
8164750.001$ 4.42Needle Screw
8247600.007$ 2.62Spring
8352570.005$ 10.82Idle Jet Holder
8474403$ 4.42Idle Jet
8541540.014$ 1.81Gasket
8676212$ 161Accelerator Pump Jet
8764290.005$ 34.51Accelerator Pump Valve Assembly
8877201$ 3.72Air Corrector Jet
8961440$ 16.62Emulsion Tube
9055530.005$ 6.41Washer
9112765.005-1Bushing
9241640.013-1Power Valve
9364700.014$ 1.11Lever Fixing Screw
9412775.017-1Bushing For Lever
95Not Serviced-1Valve Control Lever
96Not Serviced-1Washer For Lever
9747610.033-1Spring For Lever
9832610.005$ 1.61Split Pin For Rod
99Not Serviced-1Valve Control Rod
100Not Serviced-1Right Shaft Return Spring

WEBER 40 DFAV

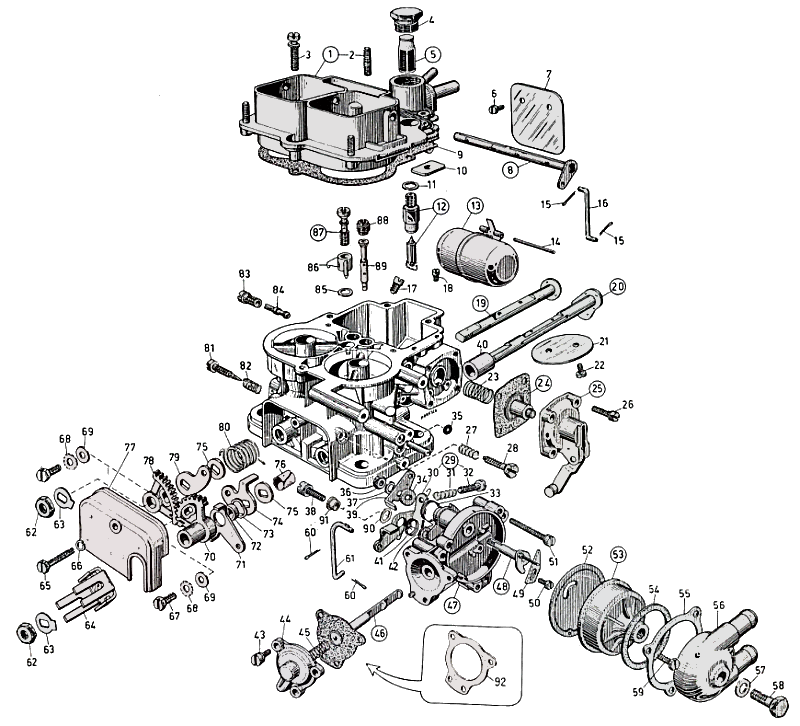

Exploded view
