WEBER 40 DFI diagrama de partes


 - haga clic en parte para ver más

Lista de partes:

NoParte NoPrecioPzas.Descripción
131716.017-1Carburetor cover Assy, including:
264955.003-3— Stud bolt
341705.020-1Carburetor Cover Gasket
441535.015-1Needle valve gasket
564240.013-1Float needle valve
641015.004$ 60.11Float
741360.001$ 3.52Air bleed jet
864290.005$ 34.51Pump Delivery Valve
941530.012-1Pump jet gasket
1041252.013$ 131Pump Jet
1161440.166$ 16.62Emulsion tube
1241160.003$ 3.52Idle jet
1352570.005$ 10.82Idle Jet Holder
1464750.009-2Idle mixture adjusting screw
1464750.018-2Idle mixture adjusting screw
1547600.007$ 2.62Spring for idle adjusting screw
1634705.001-2Air Adjusting Screw Nut
1764750.010-2Air Adjusting Screw
1864570.010-1Screw
1947610 039-1Lever return spring
2010016.451-1Oversized Throttle Shaft
2010015.459-1Throttle Shaft
2145034.030-1Throttle Lever
2255510.046$ 2.51Washer for loose lever
2355525.001-1Spring Washer
2464615.003-1Screw
2534710.003$ 1.21Throttle Spindle Nut
2655520 004-1Shaft Lock Tab
2758202.016-1Throttle Shaft Gear
2845032.085-1Fast Idle Control Lever
2955530.002$ 3.51Wavy Washer
3012765 003-1Spacer Bushing
3147600.007$ 2.61Throttle Stop Screw Spring
3264625.001-1Throttle Stop Screw
3347670.001-1Rod Clamp
3461280.043-1Tie rod
3532464.004-1Toothed Sector Box Cover
3647605.022-1Spindle return spring
3747610.056$ 5.71Spring
3845202.024-1Lever
3964615.004-1- Screw securing wire
4045202.025-1— Throttle Lever
4155510.002$ 1.71Spring Washer
4264700.012$ 3.21Lever Fixing Screw
4332486.014-1Accelerator Pump Cover Assembly Includes
4445103 003-1— Pump lever
4532484.001-1— Pump diaphragm cover
4655530.006-1— Wavy Washer
4752010.033-1— Pin
4832610.006-1— Spilt pin
4964520.029-1Fixing Screw
5064700 004-4Pump Cover Screw
51--1Carburetor Body
5247600.107$ 10.81Pump Spring
5347407.014$ 29.41Pump diaphragm
5445032.091-1Choke Lever
5564520.023-4Throttle Plate Screw
5664005.087-2Throttle plate
5664005.036-2Throttle plate
5710000.426-1Primary Throttle Shaft
5710001.454-1Primary Throttle Shaft - Oversized
5814850.003-1Pump Cam
5955510.046$ 2.51Washer for loose lever
6034705.001-2Nut
6155525.001-2Spring Washer
6255510.002$ 1.71Spring Washer
6341120.001$ 4.92Main jet
6461280.045-1Tie rod
6552000.015$ 2.21Float pivot
6632610.006-2— Spilt pin
6764900 001-1Pump discharge blanking needle
6852135.010$ 3.51Dust seal plate
6910020.206-1Choke shaft
7064010.007$ 132Choke throttle valve
7164525.003-4Choke plate fixing screw
7210354.012$ 34.71Fuel Union
7312715.021$ 41.11Fuel Union Bolt
7441530.001-2Gasket
7537022.002$ 6.41Filter element
7661002.018$ 131Fuel Filter Cover
7764700.005-5Top Cover Fixing Screw
7812775.010$ 10.11Bushing For Lever
7955530 008-1Spring Ring
8041565.010-1.Idle Mixture Screw O Ring
8158000.006$ 2.22Throttle Stop Screw O Ring Cap
8241565.002-2O-Ring For Idle Jet Holder

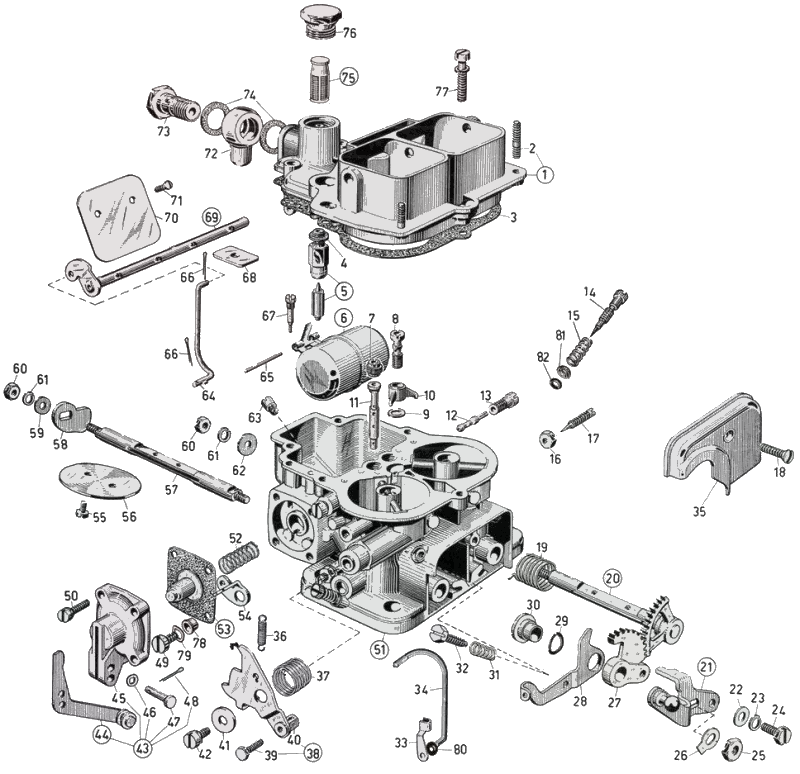

WEBER 40 DFI
