WEBER 42 DCOE 8 diagrama de partes - es - USD




Comprador anónimo
























Carb manufacturer: Carb model:
  Share link to this diagram
   Descargar la vista detallada en PDF

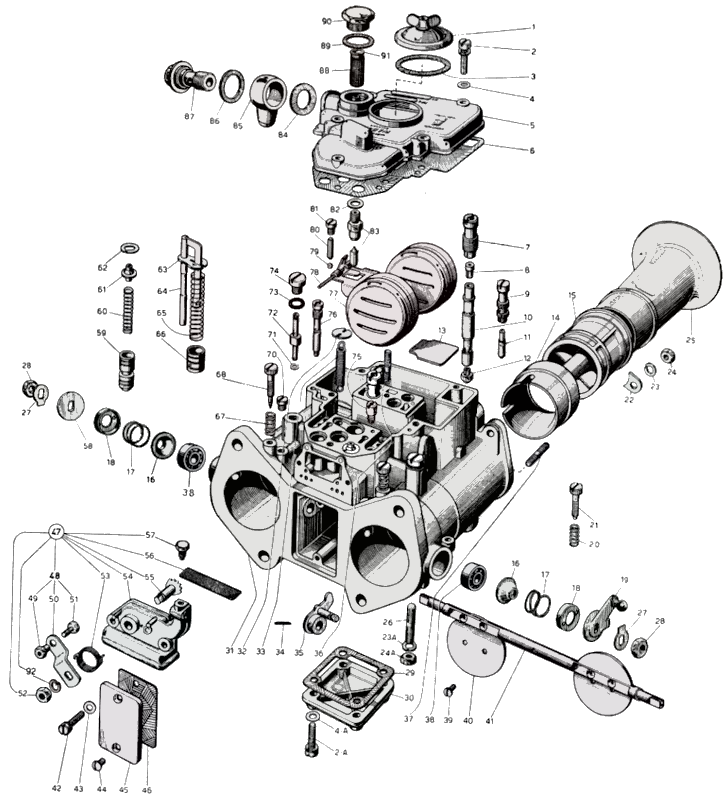

WEBER 42 DCOE 8 diagrama de partes


 - haga clic en parte para ver más

Lista de partes:

NoParte NoPrecioPzas.Descripción
0-
132376.003$ 13.21Jet inspection cover
264700.001-5Top Cover Screw
264700.001-4Carb Cover Fixing Screw
341550.002$ 1.21Jet Inspection Cover Gasket
455510.034-5Spring Washer
455510.034-4Spring Washer
531734.012-1Carburetor top cover
641715.001$ 7.21Carburettor Cover Gasket
752580.001$ 82Emulsion Tube Holder
841365.001$ 32Air corrector
952585.006$ 9.42Idle Jet Holder
1061450.032$ 11.62Emulsion Tube
1141165.052$ 3.52Idle Jet
1241110.001$ 32Main jet
1352130.003$ 2.91Plate
1434926.010-2Choke tube
1531886.002$ 35.52Aux venturi
1641570.001$ 1.22Dust Cover
1747600.063$ 2.22Spring
1858000.007$ 3.22Retaining Cover
1945034.044-1Throttle Lever
2047600.007$ 2.61Spring for throttle adjusting screw
2164590.002$ 2.31Throttle Stop Screw
2252150.005-4Air Horn Fixing Tab
2355525.002-4Spring Washer
2355525.002-1Spring Washer
2434705.004-1Air horn fixing nut
2434705.004-4Air horn fixing nut
2552840.009-2Air horn
2664955.104-1Stud
2755520.004$ 1.22Throttle Shaft Lock Washer
2834710.003$ 1.22Throttle Spindle Nut
2941640.001$ 4.41Bottom cover gasket
3032374.008$ 20.51Bottom Bowl Cover

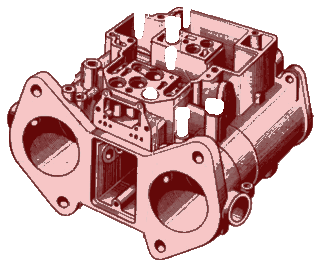

31--1Carburetor Body
3252210 006-1Spring Anchor Plate
3347605.012$ 2.81Throttle Return Spring
3458445.001-1Fixing Pin
3545082.005$ 16.61Pump Cam
3664955.007$ 13.51Inspection cover stud
3764955.104-4Stud
3832650.001$ 5.72Throttle Shaft Bearing
3964570.006$ 3.64Throttle Plate Screw
4064005.067$ 192Throttle plate
4110005.423-1Throttle Shaft
4264700.004$ 3.52Pump Cover Screw
43- 55510.038-2Washer
4464570.009-2Inspection Cover Fixing Screw
4552135.002$ 7.21Inspection cover
4641640.021$ 1.41Pump cover gasket
4732556.002$ 36.41Cold Start Unit
4845027.030-1— Cold Start Lever Assembly
4934720.002$ 6.61— Cold Start Nut
5045025.029$ 7.31— Cold Start Lever
5164800.002$ 7.61— Cold Start Bolt
5234715.010-1— Lever fixing nut
5347610.006$ 10.81— Lever return spring
5432556.001-1— Cold Start Unit
5510085.003$ 7.31— Starting shaft
5637000.016$ 6.61— Filter Screen
5764605.017$ 1.71— Choke Cable Clamp
5855555.010$ 2.91Washer For Shaft
5964330.003$ 10.22Starter valve
6047600.005$ 2.22Starter Valve Spring
6112775.004$ 52Spring guide and retainer
6210140.010$ 3.62Clip
6352140.004$ 41Pump Screen retainer
6410410.015$ 10.21Pump Rod
6547600.064$ 81Pump rod spring
6658602.003$ 10.81Pump plunger
6747600.007$ 2.62Idle Mixture Screw Spring
6864750.001$ 4.42Idle Mixture Screw
7061015.002$ 8.72Progression Hole Plug
7141535.021$ 8.52Pump Jet Gasket
7241280.001$ 7.62Pump Jet
7341565.009-2Pump Jet Cover O ring
7461015.008$ 132Pump jet cover
7564290.001$ 10.41Back bleed valve
7641205.101$ 12.62Starter Jet
7741030.004$ 36.21Brass Float
7852000.001$ 2.81Float pin
7958300.001$ 1.42Pump Valve Ball
8052730.001$ 5.72Pump Valve Weight
8161015.006$ 5.72Pump Demand Valve Cover
8241535.015-1Needle valve gasket
8364240.004$ 8.81Float valve
8441530.031-1Fuel union gasket
8510354.001-1Fuel Banjo
8641530.024-1Fuel Union Gasket
8712715.008$ 9.91Fuel Union Bolt
8837020.005$ 61Fuel Filter Element
8941530.024-1Fuel Filter Gasket
9061002.010$ 7.41Fuel Filter Cover
9112775.026$ 3.41Filter Locating Ring
9255525.010-1— Spring washer
