WEBER 48 DCO SP diagrama de partes

- haga clic en parte para ver más

Lista de partes:

No	Parte No	Precio	Pzas.	Descripción
1	32376.003	$ 15.2	1	Jet Inspection Cover
2	64700.001	-	9	Screw
3	41550.009	-	1	Jet Inspection Cover Gasket
4	31734.199	$ 105	1	Carburetor Cover
5	41715.011	$ 3.3	1	Carburetor Cover Gasket
6	52000.001	$ 3.2	1	Float
7	41030.034	$ 19.1	1	Float Pin
8	52580.001	$ 9.2	2	Emulsion Tube Holder
9	77401.160	$ 6.3	2	Air Corrector
10	61450.091	$ 13.3	2	Emulsion Tube
11	52585.006	$ 10.8	2	Idle Jet Holder
12	74821.065	$ 6.7	2	Idle Jet
13	73401.180	$ 5.4	2	Main Jet
14	68820.500	$ 67.3	2	Auxiliary Venturi
15	72136.420	$ 23.2	2	Venturi (Choke Tube)
16	64840.003	$ 6.7	4	Screw
17	34710.003	$ 1.4	1	Throttle Nut
18	45041.145	-	1	Throtle Lever
19	64595.012	-	2	Air By-Pass Screw
20	61030.008	-	2	Air By-Pass Screw Cover
21	55525.010	-	5	Spring Washer
22	34705.004	-	5	Support Bracket Fixing Nut
23	64955.104	-	1	Support Bracket Stud
24	41640.066	$ 3.6	1	Bottom Cover Gasket
25	52135.053	$ 13.3	4	Air Horn Ta b
26	52135.025	-	1	Inspection Cover
27	41640.065	$ 1.2	1	Inspection Cover Gasket
28	64570.009	$ 1	2	Inspection Cover Fixing Screw
29	52840.034	$ 31.7	1	Air Horn
30	64005.108	$ 18.4	2	Throttle Plate
31	64520.027	-	4	Throttle Plate Fixing Screw
32	64955.110	-	4	Stud
33	41565.002	-	1	Throttle Stop Screw ´O´ Ring
34	58000.006	$ 2.6	1	Throttle Stop Screw ´O´ Ring Cap
35	47600.007	$ 3.2	3	Mixture Screw Spring
36	64625.015	$ 7.9	1	Throttle Stop Screw
37	58602.003	$ 12.4	1	Pump Plunger
38	10410.015	$ 11.7	1	Pump Rod
39	55520.004	$ 1.4	2	Throttle Lock Washer
40	47600.068	$ 9.2	1	Pump Rod Spring
41	64750.058	$ 10	2	Mixture Screw
42	41565.015	-	2	Mixture Screw ´O´ Ring
43	64590.008	$ 11.7	2	Vacuum Take Off Cover
44	41535.021	$ 1.4	2	Pump Jet Gasket
45	64955.007	$ 13.6	1	Stud
46	79701.100	$ 18.3	1	Pump Exhaust Valve
47	76801.045	$ 9.3	2	Pump Jet
48	41565.009	-	2	Pump Jet Cover ´O´ Ring
49	61015.008	$ 15	2	Pump Jet Cover Screw
50	58300.003	-	2	Pump Demand Valve Ball
51	52730.001	$ 6.6	2	Pump Demand Valve Weight
52	61015.006	$ 6.6	2	Pump Demand Valve Cover
53	79503.250	$ 15.9	1	Needle Valve
54	83102.100	-	1	Needle Valve Gasket
55	41530.031	-	1	Fuel Union Gasket
56	10354.019	$ 26.9	1	Fuel Union
57	41530.024	-	2	Fuel Union and Filter Cover Gasket
58	12715.008	$ 11.4	1	Fuel Union Bolt
59	37022.002	$ 7.4	1	Fuel Filter
60	61002.010	$ 9	1	Fuel Filter Cover
61	10020.424	-	1	Throttle Shaft
62	64955.110	-	4	Stud
63	61015.009	$ 10	2	Progression Hole Inspection Cover
64	55555.010	$ 3.3	1	Washer
65	55510.128	$ 3.2	2	Washer
66	52130.003	$ 3.3	1	Plate
67	32374.008	$ 23.6	1	Bottom Cover
68	58445.001	-	1	Pin
69	45082.020	-	1	Pump Cam
70	47605.028	$ 15	1	Throttle Return Spring
71.		-

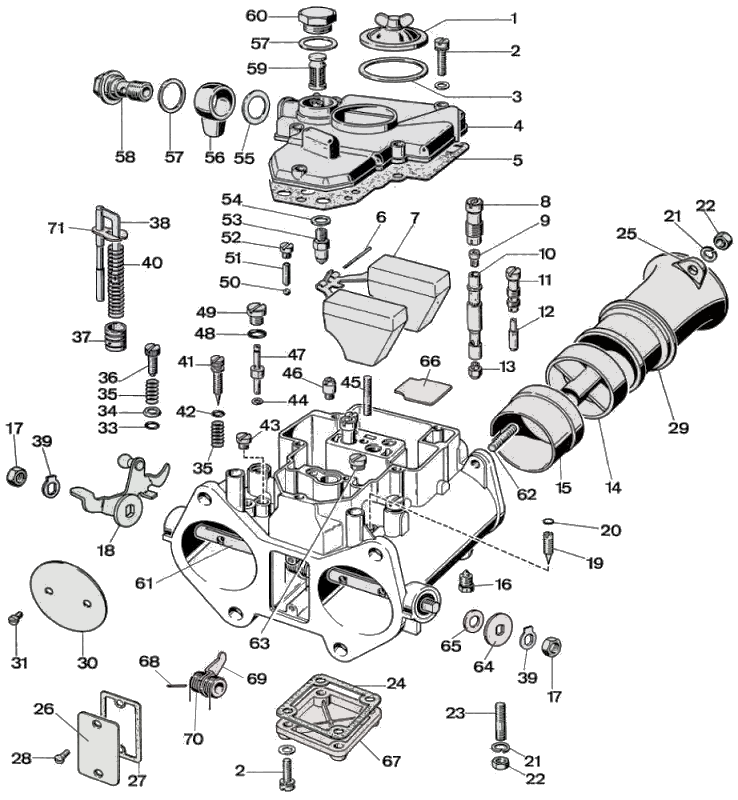

WEBER 48 DCO SP
Exploded view
