Share link to this diagram
Download exploded view as PDF

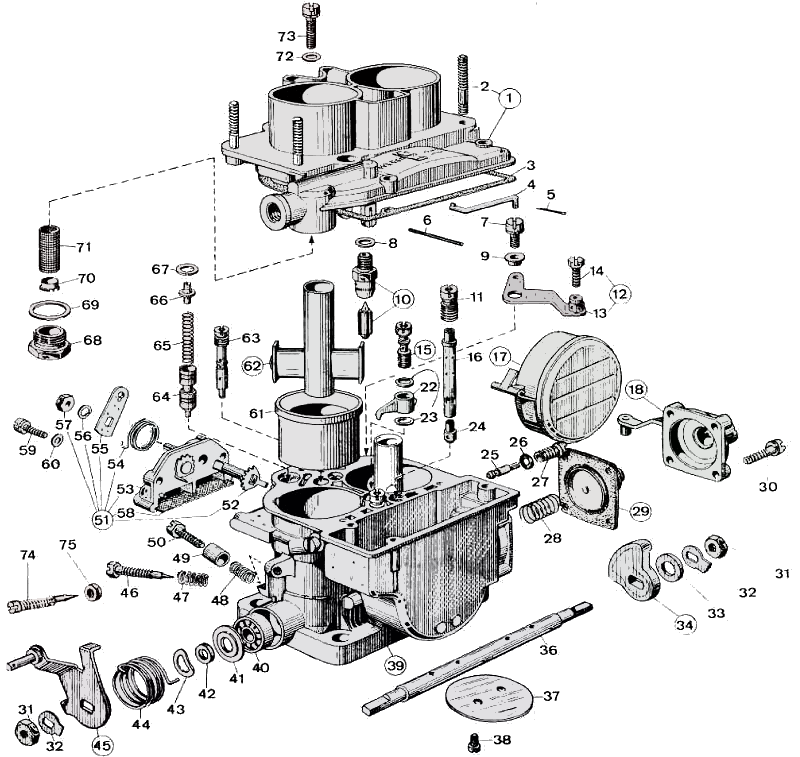

WEBER 40 DCNF parts diagram
-
click on part to see more
List of parts:
No
Part No
Price
Pcs
Description
92.0120.05
-
1
Gasket Kit- 5 Bolt Top
92.1637.05
-
1
Repair Kit- 5 Bolt Top
92.0077.05
-
1
Gasket Kit- 4 Bolt Top
92.1094.05
-
1
Repair Kit- 4 Bolt Top
1
31716.082
-
1
Carburetor Top Cover
2
64955.007
$ 13.1
4
Stud
3
41705.029
$ 9.3
1
Top Cover Gasket
4
61280.056
-
1
Choke Control Rod
5
32610.006
-
1
Split Pin
6
52000.010
$ 2
1
Float Spindle
7
64700.012
$ 3.2
1
Screw
8
41535.015
-
1
Needle Valve O Ring
9
12775.010
$ 9.9
1
Bush
10
79514.175
$ 8.2
1
Needle Valve
11
77501.220
$ 6.1
2
Air Corrector Jet
12
45096.020
-
1
Choke Control Lever
13
45096.019
-
1
Lever
14
64615.004
-
1
Screw
15
64290.014
$ 32.4
1
Pump Demand Valve
16
61450.224
$ 28.7
2
Emulsion Tube
17
41015.005
$ 85.8
1
Float
18
32486.041
-
1
Pump Cover
22
76215.045
$ 12.2
1
Pump Jet
23
41530.012
-
2
Pump Jet Gasket
24
73405.125
$ 5.7
2
Main Jet
25
74405.050
$ 4
2
Idle Jet
26
41565.002
-
2
Idle Jet O Ring
27
52570.006
$ 7
2
Idle Jet Holder
28
47600.107
$ 9.9
1
Pump Spring
29
47407.050
$ 12.5
1
Pump Diaphragm
30
64700.006
-
4
Pump Cover Screw
31
34710.003
$ 1.1
2
Throttle Shaft Nut
32
55520.004
$ 1.1
2
Lock Washer
33
12750.032
-
1
Bushing
34
14852.011
$ 22.4
1
Pump Cam
36
10005.211
$ 96.5
1
Throttle Shaft
37
64005.020
-
2
Throttle Valve
38
64520.027
-
4
Throttle Valve Screw
39
-
1
Carburetor Body
40
32650.001
$ 5.2
2
Roller Bearing
41
58000.017
-
2
Bearing Cover
42
12750.053
-
2
Spacer Bush
43
55530.010
-
2
O ring
44
47610.078
$ 6.4
1
Throttle Return Spring
45
45041.049
$ 59.2
1
Throttle control Lever
46
64755.007
$ 15.1
2
Idle Mixture Screw
47
47600.007
$ 2.5
2
Idle Mixture Screw Spring
48
47600.007
$ 2.5
2
Throttle Stop Screw Ring
49
12785.013
-
1
Throttle Stop Screw Spacer
50
64625.014
-
1
Throttle Stop Screw
51
32556.017
$ 97
1
Starter Cover
52
10085.009
-
1
Choke Control Shaft
53
32556.016
-
1
Cover
54
47610.043
$ 5.6
1
Return Spring
55
45025.089
-
1
Choke Lever
56
55525.010
-
1
Spring Washer
57
34715.010
-
1
Nut
58
37000.016
$ 5.9
1
Filter Gauze
59
64700.004
$ 3.2
2
Choke Cover Screw
60
55510.038
-
2
Washer
61
72129.320
$ 21.1
2
Venturi (Choke Tube)
62
71107.450
-
2
Auxiliary Venturi
63
75605.075
$ 11.8
2
Starter Jet
64
64330.008
$ 30.7
2
Starter Valve
65
47600.139
$ 4.6
2
Starter Valve Spring
66
12775.024
$ 4.6
2
Spring Guide
67
10140.002
$ 3.3
2
Spring Clip
68
61002.010
$ 6.9
1
Fuel Filter Inspection Cover
69
41530.024
-
1
Fuel Filter cover Gasket
70
61060.001
-
1
Filter Washer
71
37020.002
$ 5.5
1
Fuel Filter
72
55510.034
-
4
Washer
73
64700.005
-
4
Top Cover Screw
74
64750.002
$ 9.9
2
Air By-Pass Screw
75
34705.001
-
2
Air By-Pass Screw Locking Nut
