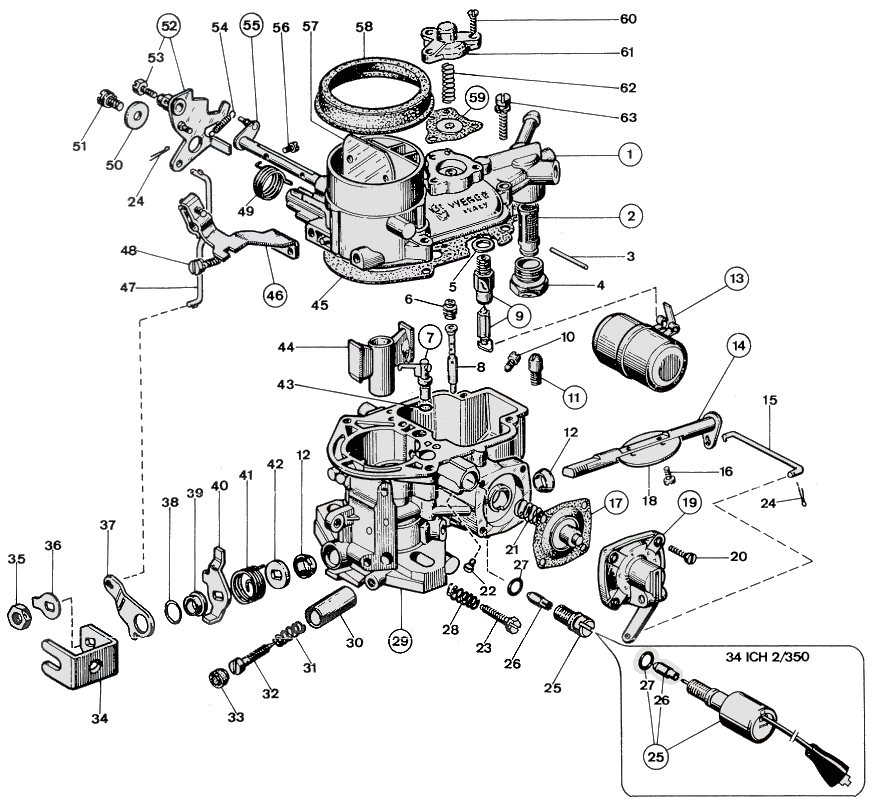

WEBER 34 ICH parts diagram


 - click on part to see more

List of parts:

NoPart NoPricePcsDescription
131706.080-1Carburetor Body
237022.010$ 7.11Fuel Filter Screen
352000.010$ 2.51Float Pin
461002.018$ 151Strainer Inspection Plug
583102.070-1Needle Valve Gasket
677201$ 4.31Air Corrector Jet
776407$ 18.41Pump Jet
861440$ 19.81Emulsion Tube
979507$ 12.41Needle & Seat
1073801$ 5.41Main Jet
1179701$ 13.21Pump Valve
1241575.010$ 7.12Bushing
1341015.011-1Float
1410015.494$ 81.51Throttle Shaft
1561280.020$ 14.61Pump Control Rod
1664520.023-2Throttle Plate Fixing Screw
1747407.261$ 13.51Accelerator Pump Diaphragm
1864005.007-1Throttle Plate
19Not Serviced-1Pump Cover
2064565.001-4Screw
2147600.107$ 12.41Accelerator Pump Spring
22Not Serviced-1Plug
2364625.012$ 10.81Throttle Stop Screw
2432610.005$ 1.62Split Pin
25a52570.009$ 15.81Idle Jet Holder
25b43904.050$ 24.71Idle Cut Off Solenoid
2674409$ 6.11Idle Jet
2741565.019-1O Ring For Idle Jet
2847600.007$ 3.11Spring For Throttle Stop Screw
29Not Serviced-1Carburetor Body
30Not Serviced-1Bushing
3147600.007$ 3.11Spring For Adjusting Screw
3264750.048$ 22.71Carb Adjusting Screw
33Not Serviced-1Plug
3445136.029$ 16.41Throttle Valve Control Lever
3534715.014$ 1.41Throttle Shaft Fixing Nut
3655520.002$ 1.41Shaft Lock Tab
3745032.075-1Fast Idle Control Lever
3855530.002$ 3.51Wavy Washer
3912775.007-1Bushing
40Not Serviced-1Lever
4147610.058-1Spring For Choke Lever
4255555.016$ 2.31Shaft Spacer
4341565.001-1O-Ring
4470519.450-1Auxiliary Venturi
4541700.010$ 5.21Top Cover Gasket
4658702.023-1Choke Cable Bracket
4761280.021-1Fast Idle Control Rod
4864700.012$ 3.21Lever Fixing Screw
4947610.003$ 5.71Spring
5055510.002$ 1.71Washer
5164700.012$ 3.21Lever Fixing Screw
5245202.125-1Lever
5364615.004-1Screw
5447605.040-1Spring
5510015.279-1Choke Shaft
5664525.003-2Choke Plate Fixing Screw
5764010.026-1Choke Plate
5810304.022-1Rubber Air Filter Adaptor
5947407.250-1Power Valve Diaphragm
60Not Serviced-3Screw
61Not Serviced-1Power Valve Cover
6247600.131-1Spring
63-Screw

WEBER 34 ICH
Exploded view
