WEBER 48 DCOE 98/99 parts diagram
-
click on part to see more
List of parts:
No
Part No
Price
Pcs
Description
1
31734.130
$ 76.2
1
Carburetor top cover
2
41715.001
$ 5.9
1
Carburettor Cover Gasket
3
83102.070
$ 0.3
1
Needle valve gasket
4
79503.250
$ 11.3
1
Needle Valve
5
41030.005
$ 46.9
1
Float
6
52580.001
$ 6.5
2
Emulsion Tube Holder
7
77401.180
$ 5.5
2
Air Correction Jet
8
52585.006
$ 7.7
2
Idle Jet Holder
9
61450.030
$ 9.5
2
Emulsion Tube
10
74821.060
$ 4.8
2
Idle jet
11
52130.003
$ 2.4
1
Plate
12
64955.007
$ 12.5
1
Inspection cover stud
13
73401.180
$ 3.8
2
Main Jet
14
72117.420
$ 17.8
2
Choke tube
15
68819.450
$ 0
2
Auxiliary venturi
16
52840.033
$ 0
2
Air horn
17
34705.004
$ 0.7
4
Air horn fixing nut
18
55525.002
$ 0
4
Spring Washer
19
52150.037
$ 0
4
Air Horn Fixing Tab
20
64955.101
$ 17.8
4
Stud
21
52155.003
$ 2.3
2
Lock Tab
22
64840.003
$ 4.8
4
Choke Fixing Screw
23
64955.104
$ 0
1
Support Bracket Stud
24
55525.002
$ 0
1
Spring Washer
25
34705.004
$ 0.7
1
Support Bracket Fixing Nut
30
45041.147
$ 0
1
Throttle Lever Assembly Includes
31
41565.002
$ 0.5
1
O-Ring For Idle Jet Holder
32
58000.006
$ 2.2
1
Throttle Stop Screw O Ring Cap
33
47600.094
$ 2.6
1
— Spring
34
64625.015
$ 6.4
1
— Screw
35
55520.004
$ 1.1
2
Throttle Shaft Lock Washer
36
34715.017
$ 1.1
2
Throttle Spindle Nut
37
47610.110
$ 0
1
Lever return spring
38
55555.046
$ 0
2
Washer For Shaft
39
41575.010
$ 5.9
2
Bushing
40
55510.087
$ 0
2
Rosetta per piastrina alberino
41
52130.011
$ 6.1
2
Piastrina di supporto per alberino
42
10005.432
$ 99.5
1
Throttle Shaft
43
64005.108
$ 11.9
2
Throttle Plate
44
64570.006
$ 3
4
Throttle Plate Screw
45
-
$ 0
1
Carburetor Body
46
41640.001
$ 3.6
1
Bottom cover gasket
47
32374.008
$ 16.8
1
Bottom Bowl Cover
48
55510.034
$ 0.5
4
Spring Washer
49
64700.001
$ 0.6
4
Carb Cover Fixing Screw
50
45082.009
$ 0
1
Pump Cam
51
58445.001
$ 0.5
1
Fixing Pin
52
41640.021
$ 1.2
1
Pump cover gasket
53
64570.009
$ 0.8
2
Inspection Cover Fixing Screw
54
52135.002
$ 8.6
1
Inspection cover
55
52135.008
$ 4.5
1
Blanking plate
56
64700.013
$ 4.8
2
Fixing Screw
57
55555.044
$ 0
1
Rosetta aggancio molla
58
47610.111
$ 0
1
Throttle Return Spring
59
55555.045
$ 0
1
Washer For Shaft
60
45041.145
$ 0
1
Throtle Lever
61
41565.002
$ 0.5
1
Throttle Stop Screw ´O´ Ring
62
58000.006
$ 2.2
1
Throttle Stop Screw O Ring Cap
63
47600.007
$ 2.6
1
Throttle Stop Screw Spring
64
64585.005
$ 0
1
Throttle stop screw
65
58602.003
$ 8.9
1
Pump plunger
66
47600.068
$ 6.5
1
Pump rod Spring
67
52140.004
$ 3.9
1
Pump Screen retainer
68
10410.015
$ 8.3
1
Pump Rod
69
64750.003
$ 3.6
2
Idle mixture screw
70
47600.007
$ 2.6
2
Idle Mixture Screw Spring
71
58000.006
$ 2.2
2
Mixture Screw O Ring Cap
72
41565.002
$ 0.5
2
Idle Mixture Screw ´O´ Ring
73
61015.002
$ 7.1
2
Progression Hole Plug
74
41535.021
$ 1.3
2
Pump Jet Gasket
75
76801.045
$ 6.7
2
Pump jet
76
41565.009
$ 0.7
2
Pump Jet Cover O ring
77
61015.008
$ 10.7
2
Pump jet cover
78
79701.100
$ 16.9
1
Pump Exhaust Valve
79
52000.001
$ 2.3
1
Float pin
80
58300.003
$ 0.3
2
Pump Demand Valve Ball
81
52730.001
$ 4.6
2
Pump Demand Valve Weight
82
61015.006
$ 4.6
2
Pump Demand Valve Cover
83
12715.008
$ 8.1
1
Fuel Union Bolt
84
41530.024
$ 0.3
1
Outer Fuel Union Gasket
85
10354.001
$ 0
1
Fuel Banjo
86
41530.031
$ 0.3
1
Fuel Union Gasket
87
37022.002
$ 5.2
1
Filter element
88
41530.024
$ 0.3
1
Fuel Filter Gasket
89
61002.010
$ 7.3
1
Fuel Filter Cover
90
32376.003
$ 12.5
1
Jet inspection cover
91
41550.002
$ 1
1
Jet inspection cover gasket
92
64700.001
$ 0.6
5
Carb Cover Fixing Screw
93
$ 0
5
Cover screw washer

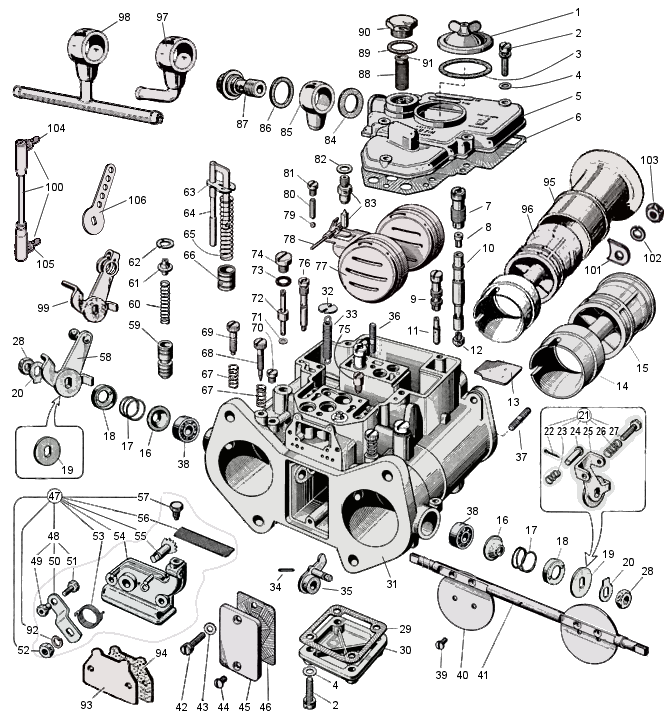

WEBER 48 DCOE 98/99 - exploded view
