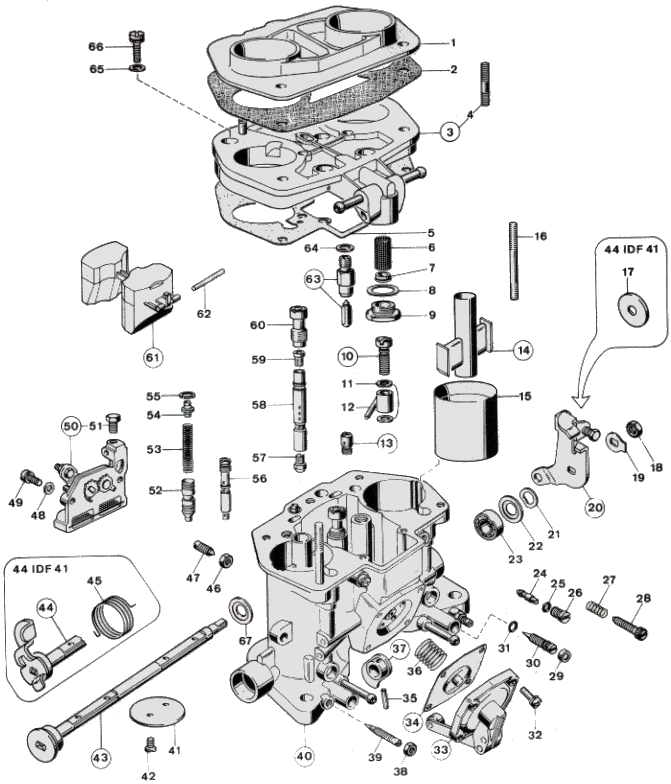

WEBER 44 IDF 40/41 parts diagram


 - click on part to see more

List of parts:

NoPart NoPricePcsDescription
152848.007-1Air Horn
241655.020$ 5.31Air Horn Gasket
331716.380-1Carburetor cover Assy, including:
464955.104-2Stud
541705.043$ 5.11Carburettor Cover Gasket
637020.002$ 5.71Fuel Filter Element
761060.001-1Filter Washer
841530.024-1Fuel Filter Gasket
961002.010$ 8.71Fuel Filter Cover
1064290.016$ 41.22Pump Demand Valve
1141530.012-4Pump jet gasket
1276210.040$ 20.82Pump jet
1379701.000$ 13.21Back bleed valve
1471102.450$ 42.72Auxiliary Venturi
1571507.340$ 31.62Choke tube
1664955.113-2Stud
1755555.005$ 31Shaft Spacer
1834710.003$ 1.41Throttle Spindle Nut
1955520.004$ 1.41Throttle Shaft Lock Washer
2045048.078-1Throttle control lever
2155530.005$ 7.61Spring Ring
2258000.015$ 4.91Spring Retaining Cover
2332650.001$ 6.61Throttle Shaft Bearing
2474405.055$ 5.12Idle Jet
2541565.002-2O-Ring For Idle Jet Holder
2652570.006$ 8.92Idle Jet Holder
2747600.007$ 3.11Idle Mixture Screw Spring
2864585.005-1Throttle stop screw
2961075.013$ 7.22Idle mixture tamper proof plug
3064750.051$ 142Idling adjusting screw
3141565.010-2Idle Mixture Screw O Ring
3264700.004$ 44Pump Cover Screw
3332486.071-1Accelerator Pump Cover
3447407.027$ 151Pump diaphragm
3558445.001-1Fixing Pin
3647600.028$ 4.81Diaphragm Loading Spring
3714852.007-1Pump Cam
3834705.006$ 12Air By-Pass Screw Locking Nut
3964750.029$ 12.42Air by-pass screw
40--1Carburetor Body
4164005.103$ 18.42Throttle Valve
4264520.027-4Throttle plate screw
4310020.419-1Throttle Shaft
4410020.420-1Throttle Shaft
4547610.035$ 12.41Throttle Return Spring
4655510.038-2Flat Washer
4634715.015-2Fixing Nut
4764830.002$ 6.72Choke Tube Fixing Screw
4855510.038-2Flat Washer
4964700.004$ 42Pump Cover Screw
5032556.005-1— Cold Start Unit
5164605.017$ 21— Choke Cable Clamp
5264330.009$ 11.72Starter Valve
5347600.133$ 4.12Starter Valve Spring
5412775.024$ 5.82Spring guide and retainer
5510140.002$ 4.12Spring Clip
5675605.090$ 152Starter Jet
5773401.145$ 5.42Main Jet
5861450.210$ 202Emulsion Tube
5977401.180$ 6.32Air Correction Jet
6052580.001$ 9.22Emulsion Tube Holder
6141030.008$ 15.91Float
6252000.001$ 3.21Float Fulcrum Pin
6379411.175-1Float valve
6483102.070-1Needle valve gasket
6555510.034-5Spring Washer
6664700.005-5Top Cover Fixing Screw
6758000.016$ 4.91Spring Retaining Cover
